0.3 Inch Multi Segment LED Display Dual Digits with 50000Hrs Lifetime

Interled Optoelectronics Technology Ltd.
Contact Now
    Buy cheap 0.3 Inch Multi Segment LED Display Dual Digits with 50000Hrs Lifetime from wholesalers

    Buy cheap 0.3 Inch Multi Segment LED Display Dual Digits with 50000Hrs Lifetime from wholesalers
    • Buy cheap 0.3 Inch Multi Segment LED Display Dual Digits with 50000Hrs Lifetime from wholesalers

    0.3 Inch Multi Segment LED Display Dual Digits with 50000Hrs Lifetime

    Ask Lasest Price
    Brand Name : Interled
    Model Number : BD2-30XXX-XX3
    Certification : RoHS
    Payment Terms : T/T
    Supply Ability : 500KK per month
    Delivery Time : 3-4 weeks
    • Product Details
    • Company Profile

    0.3 Inch Multi Segment LED Display Dual Digits with 50000Hrs Lifetime

    Dual digits, 0.3 inch digit, 7-segment diplay, common anode or common cathode.


    THT LED dual digits 0.3 inch 7-segment diplay

    a, Black or grey surface with white diffuse

    b, Colors: White, Red, Blue...All colors

    c, Digit height: 0.3"

    d, Customized requirements can meet.

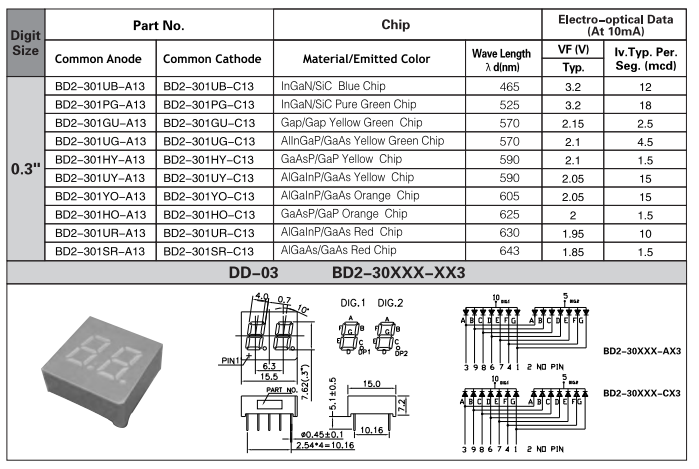

    THT LED dual digits 0.3 inch 7-segment diplay selection guide

    Part No.ChipElectro-optical Data (At 10mA)
    Common AnodeCommon CathodeMaterial/Emitted ColorWave LengthVF (V)Iv.Typ. Per.Seg. (mcd)
    λD(nm)Typ.
    BD2-301UB-A11BD2-301UB-C11InGaN/SiC Blue Chip4653.212
    BD2-301PG-A11BD2-301PG-C11InGaN/SiC Pure Green Chip5253.218
    BD2-301GU-A11BD2-301GU-C11Gap/Gap Yellow Green Chip5702.152.5
    BD2-301UG-A11BD2-301UG-C11AlGaInP/GaAs Yellow Green Chip5702.14.5
    BD2-301HY-A11BD2-301HY-C11GaAsP/GaP Yellow Chip5902.11.5
    BD2-301UY-A11BD2-301UY-C11AlGaInP/GaAs Yellow Chip5902.0515
    BD2-301YO-A11BD2-301YO-C11AlGaInP/GaAs Orange Chip6052.0515
    BD2-301HO-A11BD2-301HO-C11GaAsP/GaP Orange Chip62521.5
    BD2-301UR-A11BD2-301UR-C11AlGaInP/GaAs Red Chip6301.9510
    BD2-301SR-A11BD2-301SR-C11AlGaAs/GaAs Red Chip6431.851.5


    Quality 0.3 Inch Multi Segment LED Display Dual Digits with 50000Hrs Lifetime for sale
