    1.3" LED Dot Matrix Display 5X7 With THT Through Hole Technology Mounting

    Ask Lasest Price
    Brand Name : InterLED
    Model Number : BM3-5713XX-XXX1
    Certification : RoHS
    Payment Terms : T/T
    Supply Ability : 500KK per month
    Delivery Time : 3-4 weeks
    • Product Details
    • Company Profile

    1.3" LED Dot Matrix Display 5X7 With THT Through Hole Technology Mounting

    5X7 LED Dot Matrix Display

    Common anode or cathode


    a, Black or grey surface with white diffuse

    b, Colors: red(640nm),yellow green (572nm),pure green(525nm),yellow(590nm),blue(430nm), pure blue(470nm).

    c, Digit height: 1.3"

    d, Customized requirements can meet.


    Application

    a. Digital information

    b. LED message display board.

    c. Instruments, digital clock & toys

    d. Mark, domestic appliance and other household electrical appliances.

    e. The image display and instructions

    f. Customized LED panel displays.

    g. General use.

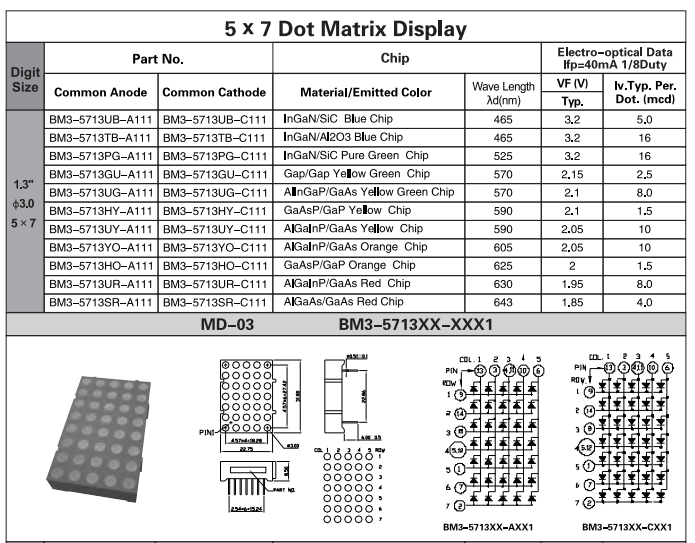

    5×7 Dot Matrix Display
    Digit SizePart No.ChipIfp=40mA 1/8DutyDrawing No.
    Common AnodeCommon CathodeMaterial/Emitted ColorWave Length λD(nm)VF (V)Iv.Typ. Per.Dot. (mcd)
    Typ.
    1.3inch ¢3.0 5×7BM3-5713UB-A111BM3-5713UB-C111InGaN/SiC Blue Chip4653.25.0MD-03
    BM3-5713TB-A111BM3-5713TB-C111InGaN/Al2O3 Blue Chip4653.216
    BM3-5713PG-A111BM3-5713PG-C111InGaN/SiC Pure Green Chip5253.216
    BM3-5713GU-A111BM3-5713GU-C111Gap/Gap Yellow Green Chip5702.152.5
    BM3-5713UG-A111BM3-5713UG-C111AlInGaP/GaAs Yellow Green Chip5702.18.0
    BM3-5713HY-A111BM3-5713HY-C111GaAsP/GaP Yellow Chip5902.11.5
    BM3-5713UY-A111BM3-5713UY-C111AlGaInP/GaAs Yellow Chip5902.0510
    BM3-5713YO-A111BM3-5713YO-C111AlGaInP/GaAs Orange Chip6052.0510
    BM3-5713HO-A111BM3-5713HO-C111GaAsP/GaP Orange Chip62521.5
    BM3-5713UR-A111BM3-5713UR-C111AlGaInP/GaAs Red Chip6301.958.0
    BM3-5713SR-A111BM3-5713SR-C111AlGaAs/GaAs Red Chip6431.854.0
