    Single Digit 1.5 Inch 7 Segment Display Through Hole Technology For Indoor

    Ask Lasest Price
    Brand Name : Interled
    Model Number : BD1-A51XX-XX1
    Certification : RoHS
    Payment Terms : T/T
    Supply Ability : 500KK per month
    Delivery Time : 3-4 weeks
    • Product Details
    • Company Profile

    Single Digit 1.5 Inch 7 Segment Display Through Hole Technology For Indoor

    Single digit, 1.5 inch digit, 7-segment diplay, common anode or common cathode.

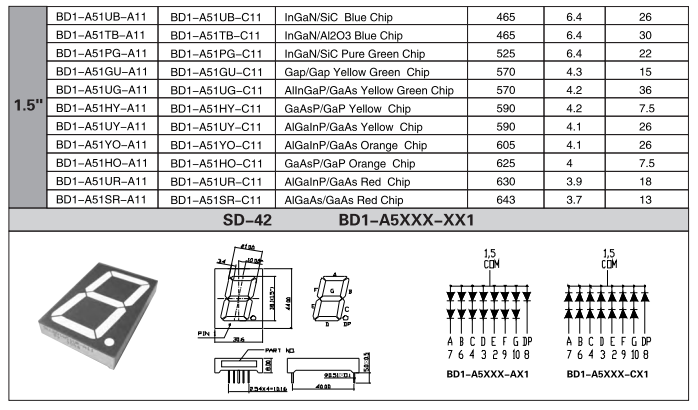

    Single digits 7 segment led display Selection Guide

    Part No.ChipElectro-optical Data (At 10mA)
    Common AnodeCommon CathodeMaterial/Emitted ColorWave Length λd(nm)VF (V)Iv.Typ. Per.Seg. (mcd)
    Typ.
    BD1-801UB-A11BD1-801UB-C11InGaN/SiC Blue Chip4653.218
    BD1-801TB-A11BD1-801TB-C11InGaN/Al2O3 Blue Chip4653.220
    BD1-801PG-A11BD1-801PG-C11InGaN/SiC Pure Green Chip5253.222
    BD1-801GU-A11BD1-801GU-C11Gap/Gap Yellow Green Chip5702.1510
    BD1-801UG-A11BD1-801UG-C11AlInGaP/GaAs Yellow Green Chip5702.115
    BD1-801HY-A11BD1-801HY-C11GaAsP/GaP Yellow Chip5902.14.5
    BD1-801UY-A11BD1-801UY-C11AlGaInP/GaAs Yellow Chip5902.0520
    BD1-801YO-A11BD1-801YO-C11AlGaInP/GaAs Orange Chip6052.0520
    BD1-801HO-A11BD1-801HO-C11GaAsP/GaP Orange Chip62524.5
    BD1-801UR-A11BD1-801UR-C11AlGaInP/GaAs Red Chip6301.9515
    BD1-801SR-A11BD1-801SR-C11AlGaAs/GaAs Red Chip6431.8510
